Steel Flange Deep Groove Ball Bearing

What Is Steel Flange Deep Groove Ball Bearing



Steel flange deep groove ball bearings are a type of bearing that is designed to handle radial and axial loads. These bearings have deep, grooved raceways in the inner and outer rings that enable them to handle both types of loads. Steel flange deep groove ball bearings are the most widely used type of bearing and can be found in a variety of applications, such as motors, pumps, and compressors.



Benefits of Steel Flange Deep Groove Ball Bearing


Lower cost
Steel flange deep groove ball bearings are cost-effective components, offering a much lower total cost of ownership than many other bearing types.
They are widely available and require minimal upkeep, meaning replacement costs are lower and downtime is minimized.
Steel flange deep groove ball bearings also require less power to rotate than most other bearing types, so they can help reduce overall energy consumption and help keep operating costs low.



High load capacity
Steel flange deep groove ball bearings can handle very high loads by utilizing their inner and outer raceways for maximum rigidity.
This makes them ideal for many applications, such as automotive transmissions, electric motors, pumps, and more.
The contact angle of the balls within the raceways provides additional strength to the bearing and helps increase its ability to support even greater loads.



High-speed capability
One of the primary benefits of steel flange deep groove ball bearings is their ability to operate at very high speeds without sacrificing performance or reliability.
Their inner and outer raceways are designed with a small contact angle, allowing them to handle high speeds while providing excellent accuracy and smoothness.
This is especially useful in applications such as electric motors where high-speed operation is often required.



Why Choose Us



Quality Assurance: ISO9001, IS014001, ISO45001, IATF16949, high-tech enterprise, specialized new enterprise.

Cutting-edge technology: The company has its own bearing parts factory, which produces rings, cages, shield and seals, which can deal with flexible and diverse Market demand.

Quality Services: We have a professional R&D and design team that designs and develops according to customer requirements and usage conditions.Professional guidance on the use and installation of bearings, making every effort to ensure bearing quality, and fully cooperating with after-sales service.



Types of Steel Flange Deep Groove Ball Bearings





Single-row deep groove ball bearings
Some of the most popular types of bearings are used in various applications. These bearings feature an inner and outer ring with a single row of steel or ceramic balls rolling between them.
The simple design provides excellent radial and axial load-carrying capability in both directions, making them suitable for high-speed operation and low-noise performance without sacrificing durability or reliability. They are also effortless to install and maintain due to their straightforward construction.



Double-row deep groove ball bearings
Designed for higher load capacity than single-row designs and feature two rows of balls that roll between the inner and outer rings for improved performance under heavy loads. In addition, double-row bearings offer lower noise levels compared to single-row designs, making them ideal for applications that require quiet operation, such as automotive transmissions and medical equipment. This type of bearing is also highly reliable and can handle continuous speeds up to 16000 RPMs without experiencing any significant wear or deterioration over time.



Four-point contact ball bearings
They were designed for high-precision applications such as robotics, aerospace, precision instruments, navigation systems, agricultural machinery, and medical devices. These bearings are characterized by four contact points between the outer ring's an inner ring's raceways, providing excellent support under heavy loads while still allowing for low friction movement at high speeds without suffering from premature wear or failure, even in harsh environments. Due to their precise nature, they also offer superior accuracy when controlling linear motion components such as pumps, compressors, valves, motors, etc., while maintaining low levels of vibration throughout their entire operating range, making them ideal for many specialized applications.



Application of Steel Flange Deep Groove Ball Bearing

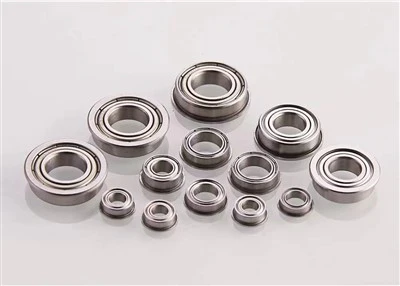

MF104 Bearing
MF84 Bearing
MF74 Bearing

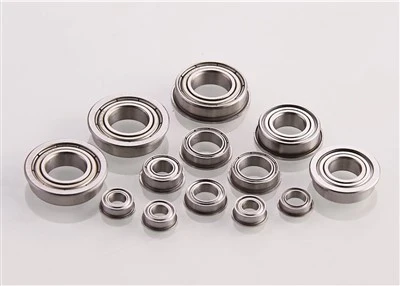

MF85 Bearing

Mechanical manufacturing industry: Steel flange deep groove ball bearing are widely used in machine tools, cnc machine tools, grinding machines, lathes, and various other mechanical equipment. They bear the load of rotating parts in these devices, ensuring stable operation and precise processing.



Power industry: In the power industry, steel flange deep groove ball bearing are used in generators, pumps, wind turbines, and other equipment to support rotating parts such as rotors and blades, ensuring reliable operation of the equipment.



Automotive manufacturing industry: In the automotive manufacturing industry, steel flange deep groove ball bearing are widely used in engines, transmissions, transmission systems, steering systems, and other components. They can withstand high-speed rotation and complex loads, ensuring the stability and reliability of automobiles.



Aerospace industry: In the aerospace industry, steel flange deep groove ball bearing are used in critical components such as aircraft engines, landing gear, and rudders. They can withstand the loads of high-speed flight and complex environments, ensuring the safety and reliability of the aircraft.



Agricultural machinery: In agricultural machinery, steel flange deep groove ball bearing are used in tractors, harvesters, seeders, and various other agricultural equipment. They can withstand heavy loads and work in harsh environments, ensuring smooth agricultural production.



Food processing industry: In the food processing industry, steel flange deep groove ball bearing are used in mixers, conveyors, baking equipment, and various other food processing equipment. They are usually made of stainless steel or specially lubricated to meet food hygiene and safety requirements.



Textile industry: In the textile industry, steel flange deep groove ball bearing are used in spinning machines, looms, printing machines, and various other textile equipment. They can withstand the requirements of high-speed operation and continuous work, ensuring efficient textile production.



Steel Flange Deep Groove Ball Bearing installation steps



Cleaning: Before installation, the bearings and bearing seats need to be cleaned to ensure that there are no residues on the surface of the parts to avoid affecting the use effect.

Apply lubricating oil: Before installation, it is necessary to apply an appropriate amount of lubricating oil inside the bearing and on the bearing seat, which can reduce friction and wear and extend the life of the bearing.

Install the bearing: Make sure the bearing is correctly placed on the bearing seat, and then install the top cover.

Install the flange: When installing the flange, you need to first align the flange with the bearing, and then tighten it together with the bearing seat fixing screws.

Install the sealing ring: Finally, install the sealing ring to prevent dust and impurities from entering the bearing.



Precautions for installation of Steel Flange Deep Groove Ball Bearing

Installation sequence

When installing steel flange deep groove ball bearing, the correct assembly sequence must be followed, otherwise it will cause performance degradation.

01

Tightness

When installing steel flange deep groove ball bearing, you need to pay attention to the tightness of the screws. It should not be too tight or too loose. Too tight will affect the normal operation of the bearing, and too loose will easily loosen the screws.

02

Lubrication

When installing steel flange deep groove ball bearing, be sure to apply an appropriate amount of lubricating oil, which can reduce friction and wear and increase the service life of the bearings.

03

Prevent contamination

When installing steel flange deep groove ball bearing, it is necessary to try to avoid dust, oil stains and other contaminants from entering the inside of the bearing, otherwise it will cause damage to the bearing or even failure.

04

Correct use

After installing the flange bearing, it needs to be used and maintained correctly, and the lubricating oil should be checked and replaced regularly to ensure its normal operation and extend its service life.

05






Our Factory



Ningbo New Century Bearing Co., Ltd. was established in October 1987. It is a manufacturer specializing in the production of precision miniature bearings. The registered trademarks are "SX" and "SXA". The company covers an area of 52,000 square meters and a workshop area of 43,000 square meters. The R&D team composed of professional engineers has more than 350 skilled workers, with an annual output of 90 million sets.

The company has its own bearing parts factory, which produces rings, cages, shield and seals, which can deal with flexible and diverse Market demand. The product types mainly include deep groove ball bearings, flange bearings, stainless steel bearings. Bearing precision can reach P5 level (ABEC-5), and the noise can reach Z4V4. Ultra-thin-wall miniature bearings are the company's specialty products.



productcate-1-1




Asked Questions



Q: What is the purpose of flange mounted bearings?

A: Usually, this is done to lock the bearing in place with the flange which prevents the bearing from moving axially in the application. Flange bearings are often used in applications with a lot of vibrations, such as automobiles, where they ensure proper bearing positioning.

Q: What are the 4 parts of a steel flange deep groove ball bearing?

A: The steel flange deep groove ball bearing are made out of four components which include inner and outer rings, cage and ball bearings. There are four main types of steel flange deep groove ball bearing which include single-row deep groove, double-row deep groove, open deep groove and shielded steel flange deep groove ball bearing.

Q: What are the advantages of steel flange deep groove ball bearing?

A: With a simplified design, low friction torque, and low operating temperature, a deep groove ball bearing has a much longer expected lifespan than other types of bearing. They also don't require any additional lubrication after they are installed, which means fewer work stoppages for maintenance.

Q: Can a deep groove ball bearing take thrust?

A: Steel flange deep groove ball bearing can carry a thrust load up to 10% of the bearings rated load. Single row angular contact ball bearings can carry radial as well as thrust loads (thrust load in only one direction).

Q: What is the best steel for ball bearings?

A: 440c stainless steel and 52100 chrome steel are the most common materials used in precision miniature and instrument ball bearings. Aisi 440c is a hardened stainless steel suitable for any application that requires corrosion resistance at room to mid-hot temperature range.

Q: What are the classification of steel flange deep groove ball bearing?

A: Deep-groove types may have a flanged outer ring, special inner ring width, thin-walled cross-sections, or a special shape for synchros. These bearings can come open, sealed, or shielded. An assortment of models suit both general and special applications. Available in open, sealed, and shielded types.

We're professional steel flange deep groove ball bearing manufacturers and suppliers in China. If you're going to wholesale steel flange deep groove ball bearing made in China, welcome to get quotation from our factory. Also, customized service is available.
